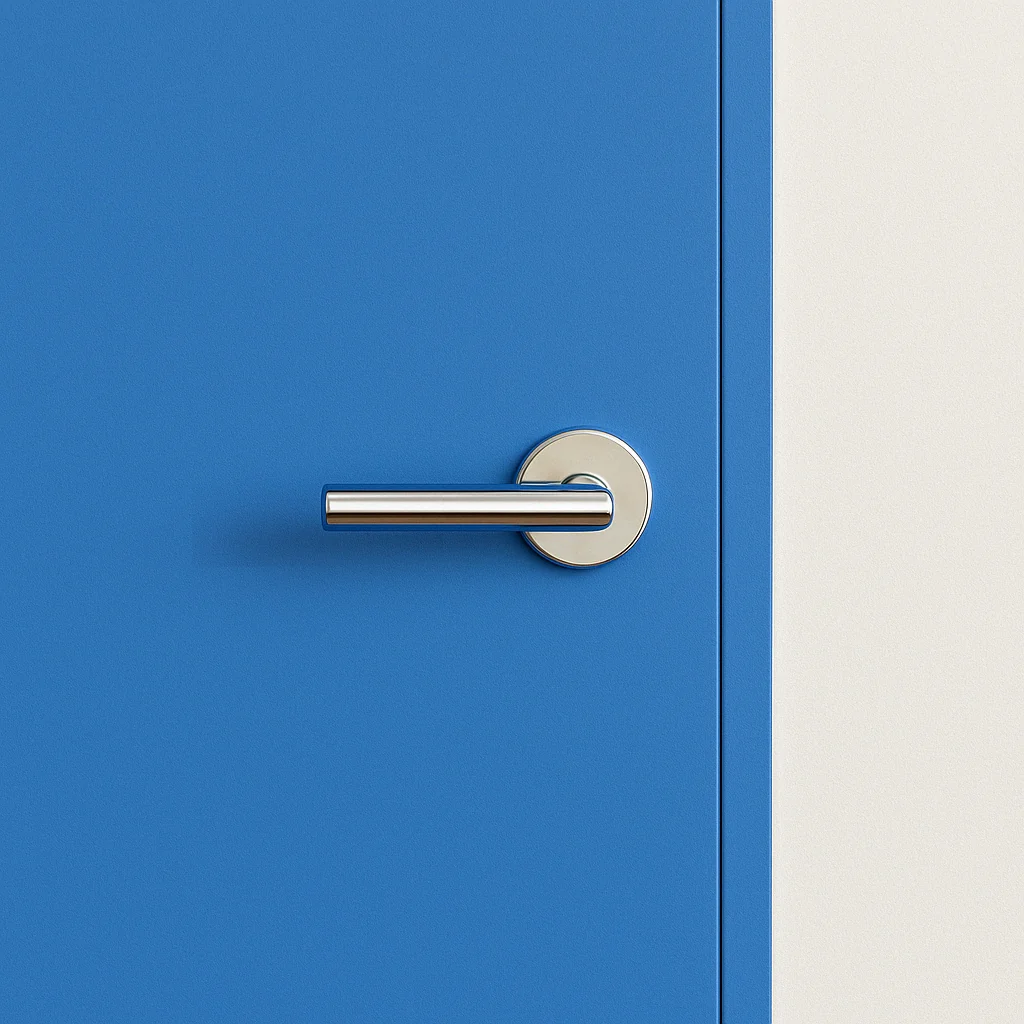

AHI 104 Door Lever Set

The AHI 104 Door Lever Set by AHI is a hollow stainless steel door lever with a slim cylindrical form and clean, minimal lines. A larger version of the 103, the 104 balances refined utility with understated design. Part of the Premium collection, suitable for interior doors in residential and commercial settings.

Available in passage, privacy, single dummy, and double dummy configurations. Sold as a complete set with all required mounting components for the selected function.

Specifications

• Lever Dimensions: L 141 mm (5.56") × W 22 mm (0.87")
• Door Thickness: 1 3/8" – 2"
• Thumb Turn: Push/pull pin on rose
• Rose Style:
  • Circle SM: Ø 52 mm (2 1/16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Circle LG: Ø 62 mm (2.44") × D 10 mm (0.3") — fits Ø 53.97 mm (2.12") bore hole
  • Square SM: 55 mm × 55 mm (2.16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Square LG: 64 mm × 64 mm (2.5") × D 10 mm (0.5") — fits Ø 53.97 mm (2.12") bore hole

Ordering Guide

Materials

Hollow stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.

Product Downloads

• Door Lever No. 104 Product Sheet (PDF)
• Installation Guide (PDF)
• Heavy Duty Installation Guide (PDF)
• Rose 200 Drawing (PDF)
• Rose 201 Drawing (PDF)
• Rose 203 Drawing (PDF)
• Rose 204 Drawing (PDF)
