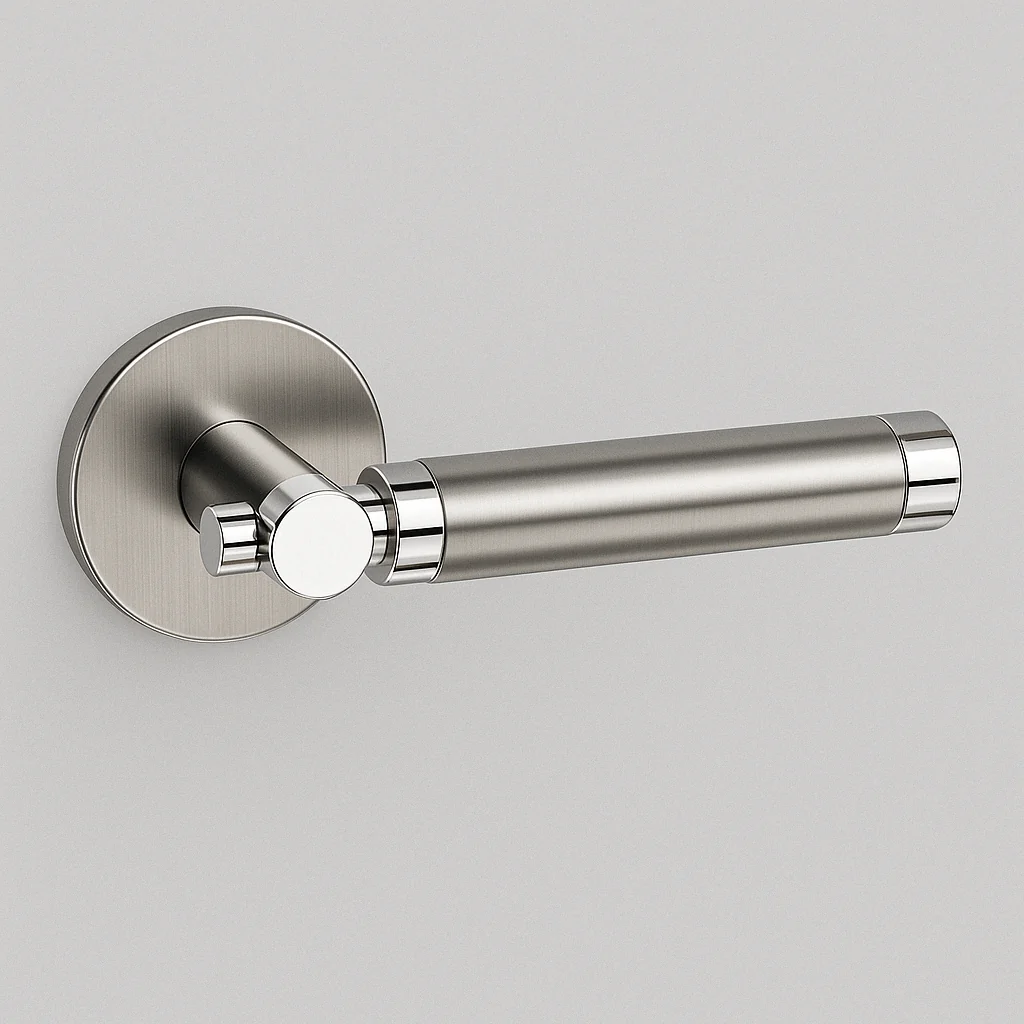

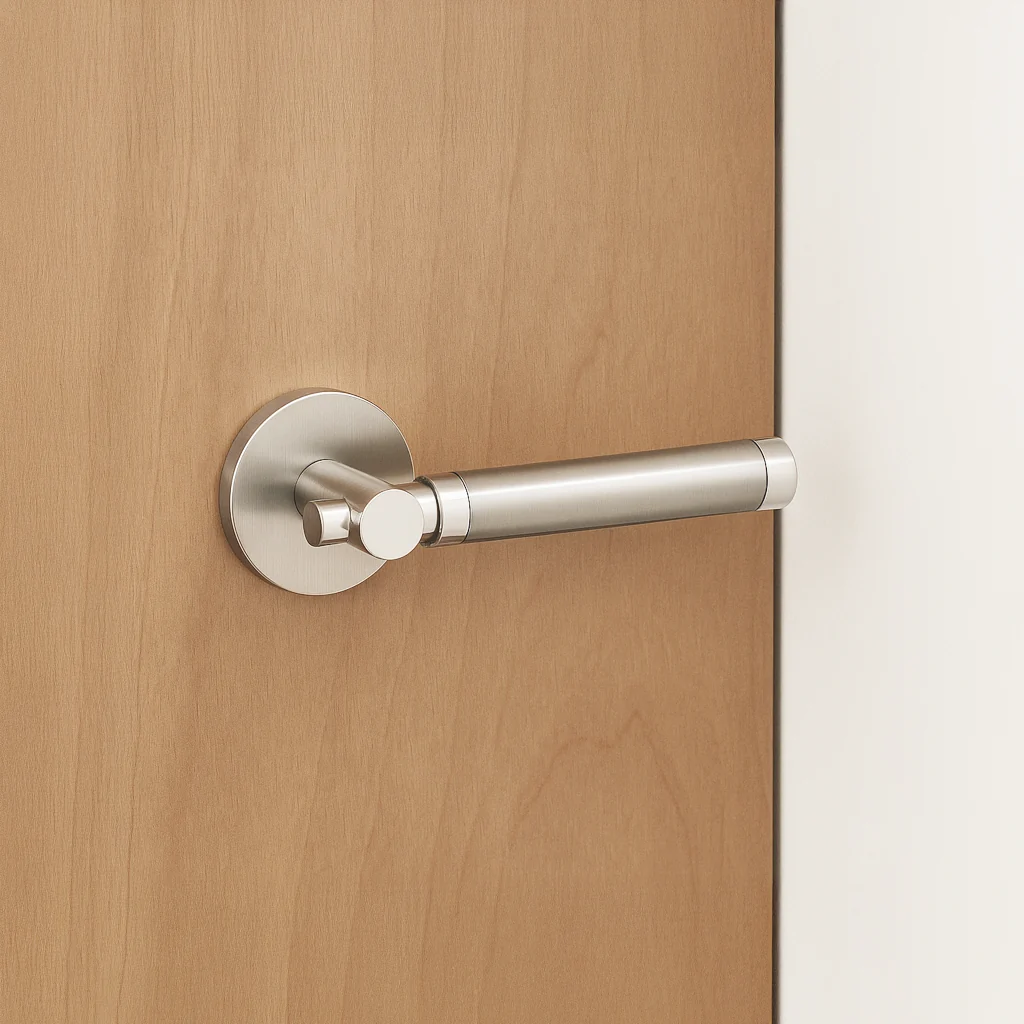

AHI 152 Door Lever Set

The AHI 152 Door Lever Set by AHI is a solid stainless steel door lever featuring intersecting cylindrical forms with varied surface textures and precise joinery. The sculptural composition brings visual depth to contemporary residential and commercial interiors.

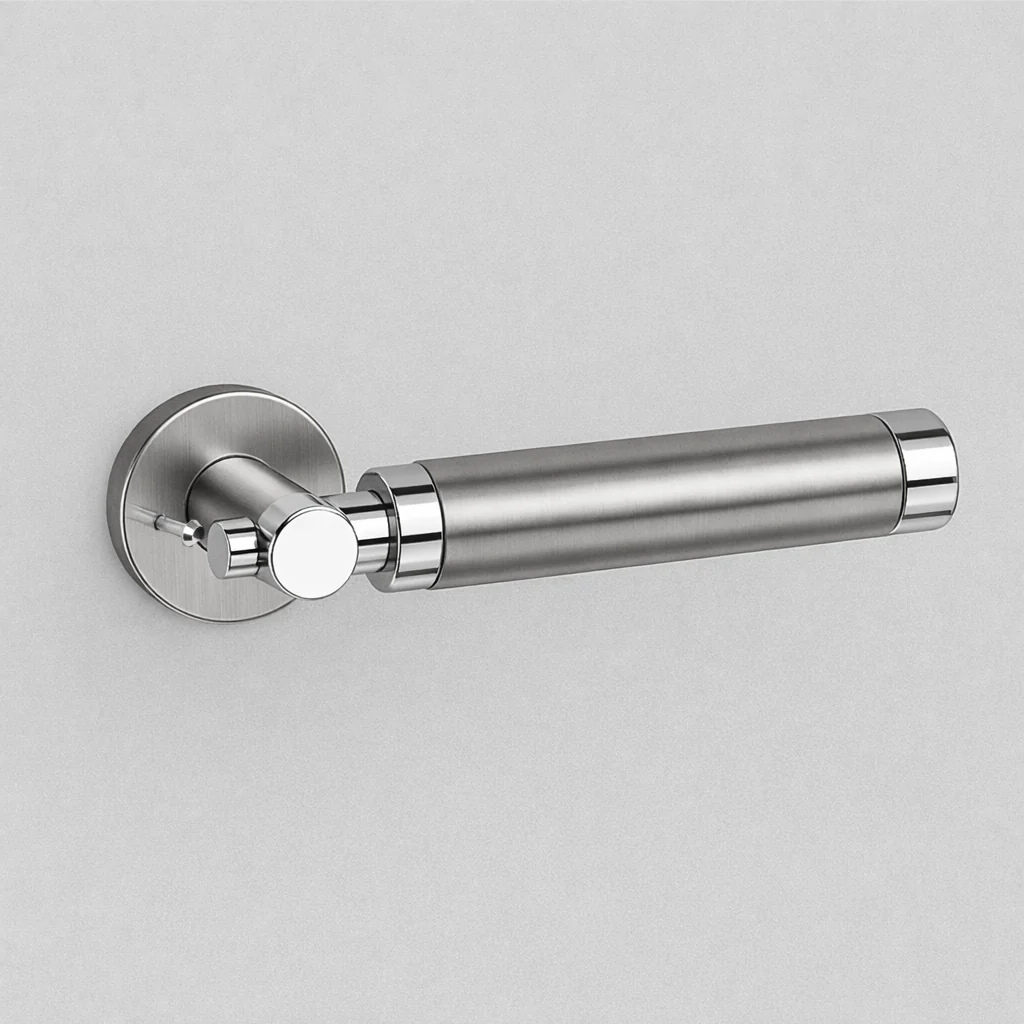

Available in passage, privacy, and dummy configurations to suit a range of door functions. Sold as a complete set with all required mounting components for the selected function.

Specifications

• Lever Dimensions: L 130 mm (5.2") × W 20 mm (0.75")
• Door Thickness: 1 3/8" – 2"
• Thumb Turn: Push/pull pin on rose
• Rose Style:
  • Circle SM (AHI Rose 200): Ø 52 mm (2 1/16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Circle LG (AHI Rose 201): Ø 62 mm (2.44") × D 10 mm (0.3") — fits Ø 53.97 mm (2.12") bore hole
  • Square SM (AHI Rose 203): 55 mm × 55 mm (2.16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Square LG (AHI Rose 204): 64 mm × 64 mm (2.5") × D 10 mm (0.5") — fits Ø 53.97 mm (2.12") bore hole

Ordering Guide

Materials

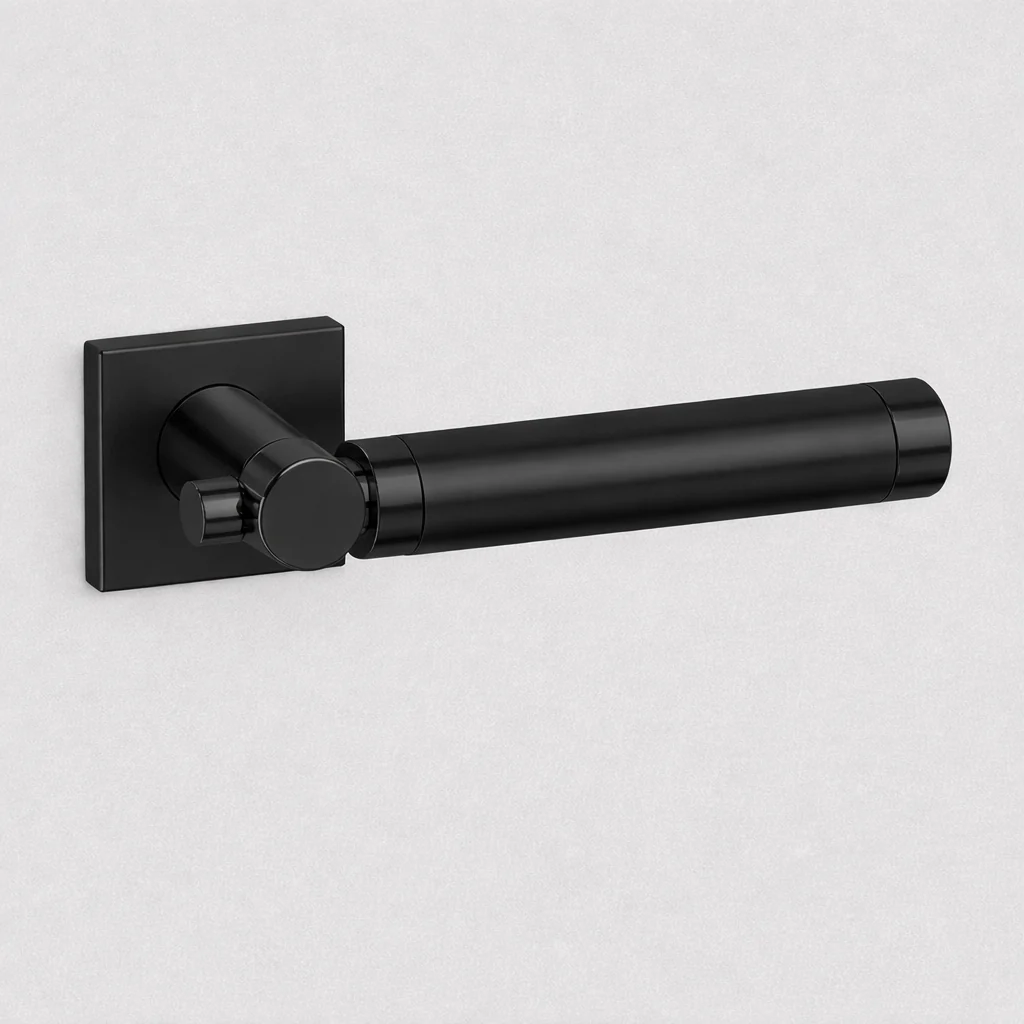

Solid stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.

Product Downloads

• Door Lever No. 152 Product Sheet (JPG)
• Door Lever No. 152 Drawing (PDF)
• Installation Guide (PDF)
• Heavy Duty Installation Guide (PDF)
• Rose 200 Drawing (PDF)
• Rose 201 Drawing (PDF)
• Rose 203 Drawing (PDF)
• Rose 204 Drawing (PDF)
